Mourad Metals, located in Tunis, Tunisia, stands out as a top-notch manufacturer and supplier of high-quality INCONEL 617 bars and rods. They cater to industries that require outstanding performance in extreme conditions. Known for their dedication to quality and precision, Mourad Metals guarantees that each product adheres to strict international standards. INCONEL 617 is a high-performance alloy made from nickel, chromium, cobalt, and molybdenum, making it perfect for high-temperature settings thanks to its remarkable strength, oxidation resistance, and corrosion resistance. By offering reliable supply and tailored solutions, Mourad Metals has earned a reputation as a trusted partner for sectors like aerospace, power generation, chemical processing, and other vital industries around the globe.
The composition of INCONEL 617 bars and rods includes approximately 50–60% nickel, 20–22% chromium, 10–12% cobalt, and 8–10% molybdenum, along with trace amounts of iron, carbon, and other elements. This carefully crafted blend provides exceptional high-temperature strength, creep resistance, and oxidation resistance. Mechanically, it boasts a tensile strength of about 827–965 MPa, a yield strength of around 414–517 MPa, and an elongation of 30–45%, depending on the heat treatment. The alloy can maintain its structural integrity at temperatures reaching up to 1093°C (2000°F), making it perfect for demanding environments that require durability and long-lasting performance.
| Standards | ASTM B166, ASME SB 166, AMS 5887 |
|---|---|
| Specifications | DIN, EN, ASTM, JIS, ASME, BS, AISI |
| 617 Inconel Round Bars size | Diameter: 3-~800mm |
| Inconel 617 Flat Bars size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Inconel 617 Angle Bars size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Inconel 617 Channel Bars | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |

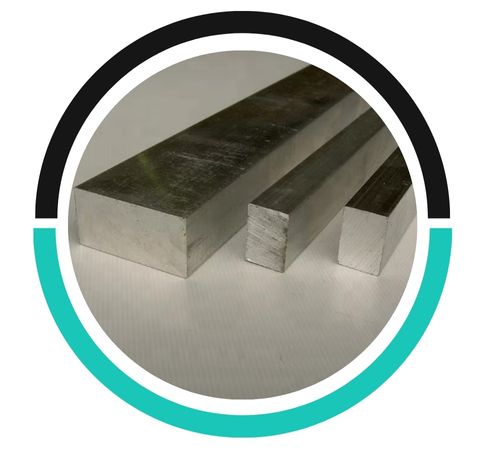

| Alloy 617 Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Inconel 617 Billet Size | 1/2 to 495mm Diameter |
| Inconel 617 Rectangle Bar Size | 33 x 30mm to 295 x 1066mm |

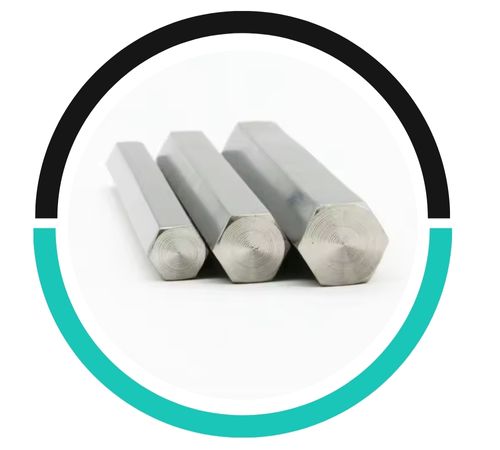

| Inconel 617 Hex Bar size | 2-100mm A/F |
| Inconel 617 Hollow Bars | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Diameter | 20mm, 30mm, 50mm, 80mm, 100mm, 150mm, 200mm, 500mm |
| Length | 1m-12m or as required |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |

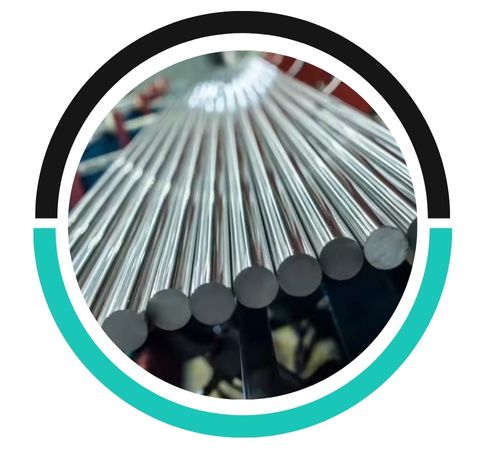

| Finish | hot rolled annealed, peeled, Bright, hot-worked and cold-worked rod and bar, centreless ground, Centreless Ground and Black, Polish, Cold Rolled (CR), hot rolled ( R), smooth turned, Cold (bright) drawn, Grinding, slit rolled edge, Rough Turned. |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Cold Drawn, Hot Rolled, Forged Round Bars, Cold Rolled, Rod |
| Processing | Bars cutting to 650mm |

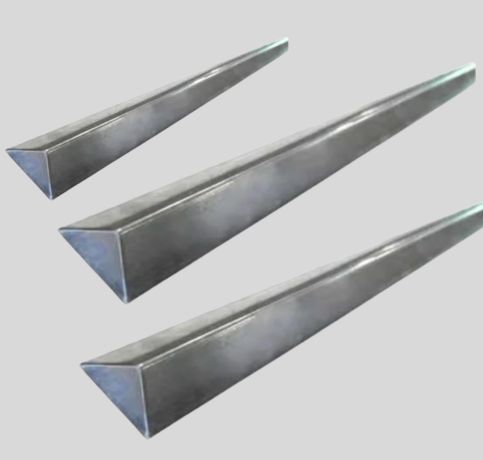

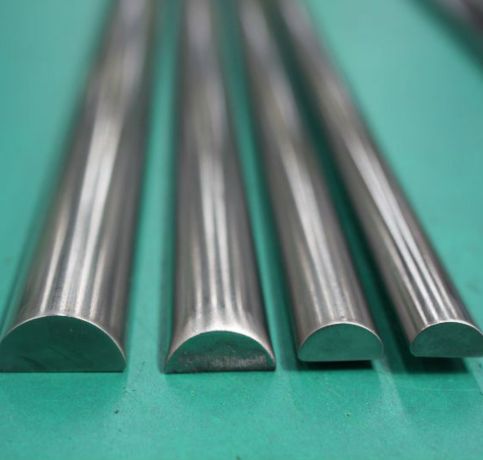

| Form | Rod, Round, Channel Bars, T-Bars, Flat Bars, Precision Ground Bars, Blocks, Square, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bars, Ingot, Billet, I/H Bars, Forging etc. |
| STANDARD | WERKSTOFF NR. | UNS |
| Inconel 617 | 2.4663 | N06617 |
| Grade | Ni | Cr | Fe | C | Mn | S | Mo | Si | Co |
| Inconel 617 | 48.85 – 62 | 20 – 24.0 | Balance | ≤ 0.15 | ≤ 1 | – | 8 – 10 | ≤ 1 | 10-15 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.3g/cm³ | 1363°C | ≥ 485 MPa | ≥ 275 MPa | 25 % |
Yes, Inconel 617 Bars/Rods are designed to perform exceptionally well in high-temperature environments up to 980°C.
Yes, they can be tailored in terms of size, dimensions, and specifications to meet specific industrial requirements.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@mouradmetals.com
INCONEL 617 bars and rods find extensive use in industries that operate under harsh thermal and corrosive conditions. They are key components in applications such as gas turbines, aerospace parts, heat exchangers, nuclear reactors, and chemical processing equipment. Thanks to its high-temperature strength and oxidation resistance, it’s ideal for furnace parts, turbine blades, and nuclear steam generators. Moreover, its corrosion resistance ensures longevity in environments with high-pressure gases, molten salts, or acidic conditions. Mourad Metals provides these bars and rods tailored to meet specific requirements, supporting engineering projects with precision.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Mourad Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Tunis, Tunisia
