Mourad Metals, located in Tunis, Tunisia, has built a solid reputation as a reliable manufacturer and supplier of top-notch Stainless Steel 416 Hollow Bars, catering to a variety of industrial needs. With a strong emphasis on precision manufacturing and rigorous quality control, they produce hollow bars that boast impressive dimensional accuracy and consistent wall thickness. By blending cutting-edge production methods with deep industry knowledge, Mourad Metals ensures that their products perform reliably and meet international standards. Renowned for their prompt delivery and customer-centric approach, they serve both local and global clients looking for durable, machinable stainless steel hollow bar solutions.

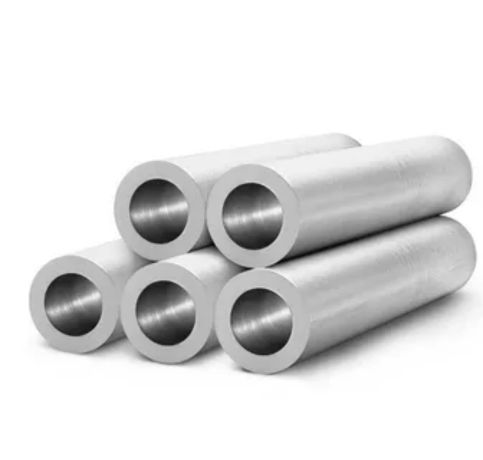

Stainless Steel 416 Hollow Bar is a martensitic stainless steel that contains around 12–14% chromium, with added sulfur to enhance machinability significantly. It has a moderate carbon content, which allows for heat treatment to achieve greater strength and hardness. This alloy provides good tensile and yield strength while maintaining fair toughness. Although its resistance to corrosion isn’t as high as that of austenitic grades, it holds up well in mildly corrosive environments. Its excellent machinability enables high-speed machining and outstanding surface finishes, making it perfect for precision components.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Range : Range – 3.17mm to 350mm dia
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 416 | 0.15 | 14.0 – 12.0 | 1.25 | – | 0.06 | 0.15 | 1 |
| Element | Density, lb/in3 | Melting Point | Electrical Resistivity |
| SS 416 | 0.282 lbs/in3 7 .80 g/cm3 | 2700 – 2790 °F (1488 – 1530 °C) | At 70 °F (21 °C): 343.0 |
| Hollow Bar | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.49 | 1.60 |
| 18 | 0.62 | 2.02 |
| 20 | 0.76 | 2.49 |
| 22 | 0.92 | 3.02 |
| 25 | 1.19 | 3.90 |
| 28 | 1.49 | 4.89 |
| 28 | 1.49 | 4.89 |
| 30 | 1.71 | 5.61 |
| 32 | 1.95 | 6.38 |
| 36 | 2.46 | 8.08 |
| 38 | 2.74 | 9.00 |
| 40 | 3.04 | 9.97 |
| 45 | 3.85 | 12.62 |
| 50 | 4.75 | 12.62 |
| 56 | 8.96 | 19.55 |
| 60 | 6.84 | 22.44 |
| 65 | 8.03 | 26.34 |
| 70 | 9.31 | 30.54 |
| 75 | 10.69 | 35.06 |
| 80 | 12.16 | 39.89 |
| 90 | 15.39 | 50.49 |
| 100 | 19 | 62.34 |
SS 416 hollow bars are commonly used in industries like automotive, aerospace, and petrochemicals, as well as in manufacturing pumps, valves, and gears due to their machinability and corrosion resistance.
SS 416 hollow bars are not ideal for high-temperature applications due to their reduced corrosion resistance and mechanical properties at elevated temperatures. They perform best in moderate conditions, excelling in machinability and wear resistance for general engineering uses.
You’ll find Stainless Steel 416 Hollow Bars commonly used in applications where machining ease and mechanical strength are crucial. Typical applications include shafts, bushings, sleeves, valve parts, pump components, and precision fasteners. They are widely utilized in the automotive, general engineering, and industrial machinery sectors. The hollow design not only helps reduce weight and material waste but also cuts down on machining costs. These bars are particularly well-suited for creating complex, close-tolerance parts in high-volume manufacturing settings.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
