Mourad Metals is a trusted manufacturer and supplier of Titanium Grade 2 Forgings, proudly based in Tunis, Tunisia. We cater to a variety of global industries with top-notch titanium products. Titanium Grade 2 is highly regarded for its impressive corrosion resistance, solid strength, and exceptional formability. At Mourad Metals, we produce our forgings using cutting-edge manufacturing techniques and rigorous quality controls to ensure they meet international standards. Our focus is on delivering reliable performance, precise dimensions, and tailored solutions. With our technical know-how and dedication to customer satisfaction, we provide Titanium Grade 2 Forgings that are perfect for demanding applications in industrial, marine, chemical, and aerospace sectors around the world.
Titanium Grade 2 is a commercially pure titanium alloy, containing about 99.2% titanium, along with carefully controlled levels of oxygen, nitrogen, carbon, hydrogen, and iron. This unique composition grants it excellent corrosion resistance and weldability, as well as good ductility. Typically, Titanium Grade 2 Forgings boast a tensile strength of around 345 MPa, a yield strength close to 275 MPa, and an elongation of about 20%. These mechanical properties create a well-rounded mix of moderate strength, toughness, and flexibility, making the material ideal for both structural and corrosion-resistant applications.
| Specifications | ASTM B381, ASME SB381 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |
| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| ASTM B381 R50400 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 | 3.7035 | R50400 |
The durability of Titanium Gr 2 forgings is ensured by factors like high corrosion resistance, excellent strength-to-weight ratio, superior fatigue resistance, heat treatment, proper alloy composition, and precision manufacturing processes.
Titanium Gr 2 forgings are commonly used in aerospace, chemical processing, marine, medical, automotive, and power generation industries due to their corrosion resistance, strength, and lightweight properties.

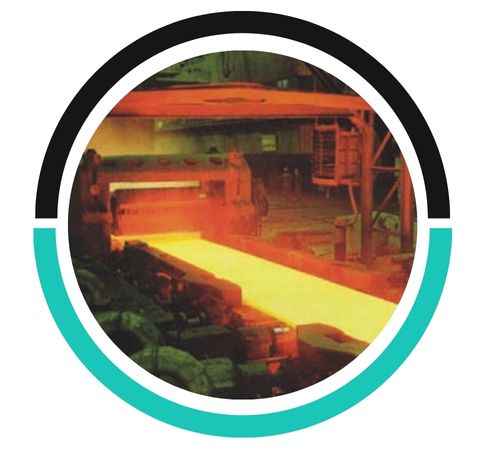

Open-die forging for Titanium Gr 2 components involves shaping the metal by pressing it between two flat dies. It allows for high strength, uniformity, and precise control, making it ideal for complex, large components.
You’ll find Titanium Grade 2 Forgings in a wide range of applications where corrosion resistance and reliability are paramount. They’re often used in chemical processing equipment, heat exchangers, pressure vessels, and piping systems that come into contact with aggressive media. In marine settings, they’re essential for seawater handling systems and offshore components. Additionally, aerospace structures, power generation equipment, and various medical and industrial components benefit from the lightweight, durable, and long-lasting nature of Titanium Grade 2 Forgings, along with their ease of fabrication.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Mourad Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Tunis, Tunisia
