Mourad Metals is a reliable manufacturer and supplier located in Tunis, Tunisia, focusing on top-notch Copper Nickel Hex Bars for various industrial, marine, and engineering needs. With state-of-the-art production facilities, a team of skilled professionals, and rigorous quality control measures, the company guarantees products that boast consistent quality, precise dimensions, and impressive corrosion resistance. Mourad Metals provides Copper Nickel Hex Bars in a range of sizes, grades, and finishes, offering tailored solutions at competitive prices, along with efficient logistics and attentive customer support for both local and international markets.

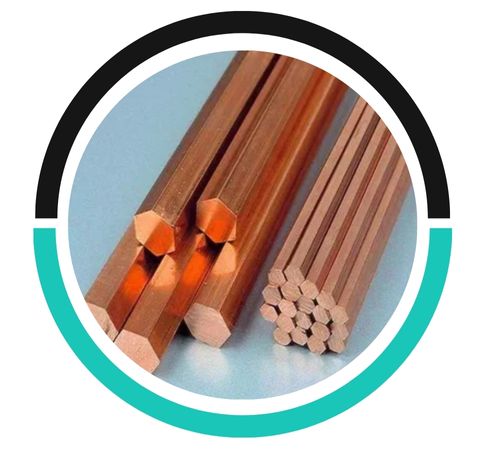

These Copper Nickel Hex Bars are crafted from copper-nickel alloys, usually made up of 90% copper and 10% nickel, sometimes enhanced with trace elements to boost mechanical strength and corrosion resistance. They showcase remarkable tensile strength, high ductility, and resistance to wear and fatigue. Their outstanding corrosion resistance makes them perfect for use in seawater, brine, and harsh chemical environments, while also providing good thermal and electrical conductivity. The hexagonal shape makes them easy to grip, machine, and install, ensuring precision and high performance in various applications.
| Properties | Description |
|---|---|
| Standard | ASTM B 111 |
| Range | 5 mm To 500 mm thick in 100 mm TO 6000 mm |
| Wire Range | 50 Swg. to 4 Swg. |
| Length | 100 mm to 3660 mm Long |
| Form | Round, Square, Hex (A/F), Bush, Rectangle , Flat, Wire Mesh |
| Application | Sea water pipework, Offshore fire water systems, Heat exchangers and condensers, Sheathing of legs and risers on offshore platforms and boat hulls, Hydraulic lines, Fish cages for aquaculture, Desalination units. |
| Grade | Mn | Cu | Pb | Fe | Ni | Zn |
|---|---|---|---|---|---|---|
| 90/10 | 1.0 max | 88.6 min | 0.5 max | 1.8 max | 9-11 max | 1 max |
| 70/30 | 1 max | 65.0 min | 0.5 max | 0.4-1.0 | 29-33 | 1 max |
| Grade | Melting point | Density | Tensilestrength | Elongation | Yieldstrength(0.2%Offset) |
|---|---|---|---|---|---|
| 90/10 | 2260°F | 8.8g/cm3 | 50000 PSi | 30% | 20000PSi |
| 70/30 | 2260°F | 0.323 lb/in3 at 68°F | 50000 PSi | 30% | 20000PSi |
| CUNI Hex Bar | Size(mm) | 16 | 18 | 20 | 22 | 25 | 28 | 30 | 32 | 36 | 38 | 40 | 45 | 50 | 56 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WT / mtr (KG) | 2.05 | 2.59 | 2.49 | 3.87 | 5 | 6.27 | 7.2 | 8.19 | 10.37 | 11.55 | 12.8 | 16.2 | 20 | 25.08 | |
| WT / feet (KG) | 0.62 | 0.79 | 0.76 | 1.18 | 1.52 | 1.91 | 2.19 | 2.5 | 3.16 | 3.52 | 3.9 | 4.94 | 6.1 | 7.65 |
| Hex bar – metric sizes and weights | ||
|---|---|---|
| Size | KG’s / metre | Standard length (m) |
| 13 x 5 | 0.46 | 6.0 |
| 13 x 3 | 0.31 | 6.0 |
| 16 x 3 | 0.38 | 6.0 |
| 10 x 3 | 0.24 | 6.0 |
| 16 x 8 | 1.03 | 6.0 |
| 16 x 5 | 0.64 | 6.0 |
| 20 x 3 | 0.48 | 6.0 |
| 20 x 6 | 0.97 | 6.0 |
| 20 x 5 | 0.81 | 6.0 |
| 20 x 10 | 1.61 | 6.0 |
| 25 x 5 | 1.01 | 6.0 |
| 25 x 3 | 0.60 | 6.0 |
| 25 x 6 | 1.21 | 6.0 |
| 25 x 10 | 2.01 | 6.0 |
| 25 x 8 | 1.61 | 6.0 |
| 25 x 12 | 2.41 | 6.0 |
| 32 x 5 | 1.29 | 6.0 |
| 32 x 3 | 0.77 | 6.0 |
| 32 x 6 | 1.55 | 6.0 |
| 32 x 10 | 2.58 | 6.0 |
| 32 x 8 | 2.06 | 6.0 |
| 32 x 12 | 3.09 | 6.0 |
| 40 x 5 | 1.61 | 6.0 |
| 40 x 3 | 0.97 | 6.0 |
| 40 x 6 | 1.93 | 6.0 |
| 40 x 10 | 3.22 | 6.0 |
| 40 x 8 | 2.58 | 6.0 |
| 40 x 12 | 3.86 | 6.0 |
| 40 x 20 | 6.14 | 6.0 |
| 40 x 16 | 5.15 | 6.0 |
| 50 x 3 | 1.21 | 6.0 |
| 50 x 6 | 2.41 | 6.0 |
| 50 x 5 | 2.01 | 6.0 |
| 50 x 8 | 3.22 | 6.0 |
| 50 x 12 | 4.83 | 6.0 |
| 50 x 10 | 4.02 | 6.0 |
| 50 x 16 | 6.44 | 6.0 |
| 50 x 25 | 10.1 | 6.0 |
| 50 x 20 | 8.05 | 6.0 |
| 65 x 3 | 1.57 | 6.0 |
| 65 x 6 | 3.14 | 6.0 |
| 65 x 5 | 2.62 | 6.0 |
| 65 x 8 | 4.18 | 6.0 |
| 65 x 12 | 6.28 | 6.0 |
| 65 x 10 | 5.23 | 6.0 |
| 65 x 16 | 8.37 | 6.0 |
| 65 x 25 | 13.1 | 6.0 |
| 65 x 20 | 10.5 | 6.0 |
| Grade | UNS | Werkstoff Nr. |
| 90/10 | C70600 | 2.0872 |
| 70/30 | C71500 | 2.0882 |
Yes, copper-nickel hex bars are customizable. They can be produced in various sizes, lengths, and finishes according to specific customer requirements. Customization options may include heat treatments, surface finishes, and alloy compositions.
Copper Nickel Hex Bars find their place in marine, chemical, and industrial engineering sectors thanks to their durability, strength, and resistance to corrosion. You’ll often see them used in fasteners, shafts, valve components, pump parts, structural supports, and specialized machinery parts. They’re also essential in shipbuilding, offshore equipment, and desalination plants, where long-term reliability and resistance to biofouling are crucial. These bars are perfect for machining, welding, forming, and assembly in demanding industrial and marine settings.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
