Mourad Metals, located in Tunis, Tunisia, is a reliable manufacturer and supplier of top-notch nickel-iron-chromium alloys, including Incoloy 330 Bars and Rods. Known for their precision and outstanding quality, Mourad Metals crafts bars and rods that boast an excellent surface finish, precise dimensions, and consistent mechanical properties. Designed to thrive in high-temperature and corrosive environments, these products are perfect for applications in chemical processing, petrochemicals, aerospace, and power generation. With a strong emphasis on oxidation resistance, high strength, and long-lasting durability, Mourad Metals guarantees that its Incoloy 330 Bars and Rods provide dependable performance in critical industrial settings.
Incoloy 330 Bars and Rods are nickel-iron-chromium alloys enhanced with cobalt, copper, and titanium, which give them remarkable resistance to oxidation, carburization, and scaling at high temperatures. On the mechanical side, they deliver high tensile strength, excellent creep resistance, and good toughness, ensuring they maintain their shape and performance even under thermal cycling and high-temperature conditions. Their unique alloy composition makes them ideal for environments that demand both high-temperature strength and corrosion resistance for extended use.
| Grade | Incoloy 330 – UNS N08330 |
|---|---|
| Specification | ASTM B511 UNS N08330, AMS 5716, ASTM B511, ASME SB511 |
| Round bar size | Diameter: 3-~330mm |
| Hex Bar size | 2-100mm A/F |

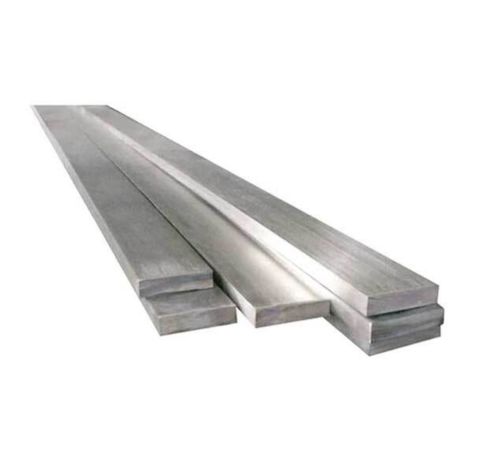

| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |

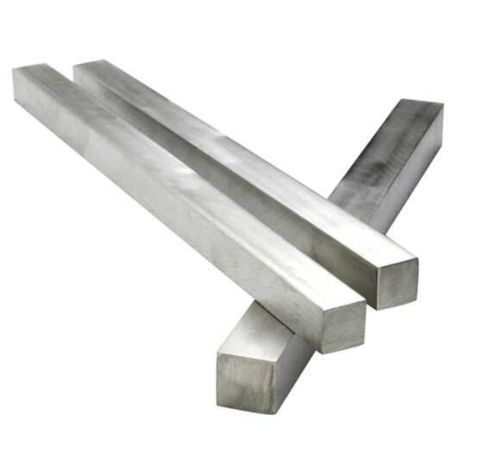

| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |

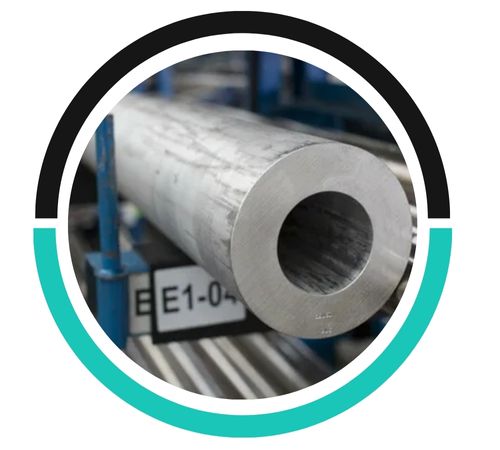

| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2″ to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Round Bar Standard Dimensions | Diameter / Height: |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Condition | Hardened & tempered, annealed |
| Technique | Incoloy 330 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Processing | Bar cutting to 650mm |
| Form | Incoloy 330 Rod,Channel Bar, Forging, Precision Ground Bar, Flat Bar, Round, Rod, T-Bar, Square, Blocks, Round Rod, Rings, Hollow, Threaded, Half Round Bar, Profiles, Triangle, Rectangle, Hex (A/F), Billet, Ingot, I/H Bar etc. |
| Our stockyad location for fast delivery across India | Shivamogga, Agra, Ahmedabad, Mumbai, Dhanbad, Thiruvananthapuram, Bengaluru, Tiruchirappalli, Pune, Noida, Tirunelveli, Bhubaneswar, Chennai, Coimbatore, Pimpri-Chinchwad, Hyderabad, Navi Mumbai |
| Our Incoloy 330 Round bar conforms to NACE MR0175/ISO 15156 | |
|
Element |
Average Nominal % |
|---|---|
|
Chromium |
18.00 – 22.00 |
|
Nickel |
34.00 37.00 |
|
Carbon |
0.08 Max |
|
Silicon |
1.00 – 1.50 |
|
Manganese |
2.00 Max |
|
Phosphorus |
0.03 Max |
|
Sulfur |
0.03 Max |
|
Copper |
1.00 Max |
|
Iron |
Balance |
|
Tensile Strength – ksi (min.) |
0.2% Offset Yield Strength – ksi (min.) |
Elongation in 2 inches – % (min.) |
Hardness – Rockwell B |
|---|---|---|---|
|
70 |
30 |
30 |
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Incoloy 330 | 1.4886 | N08330 |
Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
Yes, Incoloy 330 bars and rods offer excellent corrosion resistance, especially in high-temperature environments. They are highly resistant to oxidation, carburization, and sulfidation.
Yes, Incoloy 330 bars and rods can be customized in various sizes and lengths to meet specific requirements. They are available in different diameters, lengths, and shapes as per client specifications.
Incoloy 800, 800H, and 800HT bars and rods perform exceptionally well in high-temperature environments, maintaining their strength and resistance to oxidation and carburization. They are ideal for applications in furnaces, heat exchangers, and gas turbines.
These Incoloy 330 Bars and Rods find their place in various applications, including high-temperature chemical processing, furnace components, heat exchangers, petrochemical equipment, turbine parts, and aerospace structures. Their exceptional oxidation and corrosion resistance guarantee a long service life and less maintenance, even in extreme conditions. Engineers trust Incoloy 330 Bars and Rods to create durable, high-performance components that can endure harsh chemical exposure, intense heat, and the rigors of demanding industrial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
