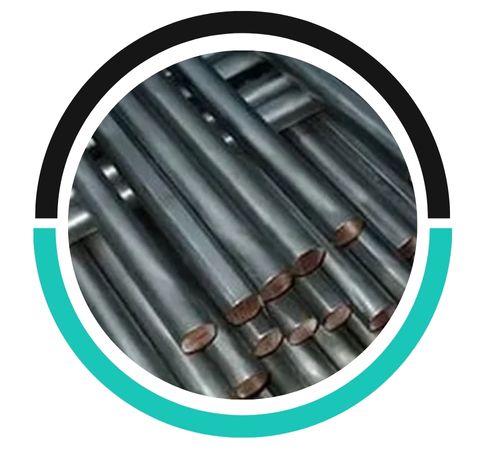

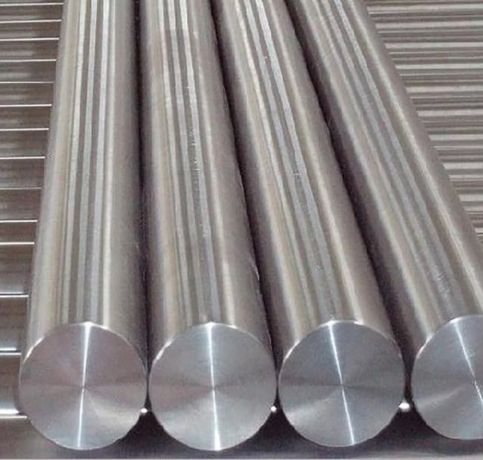

Mourad Metals, located in Tunis, Tunisia, is a leading manufacturer and supplier of high-quality nickel-alloy products, including Incoloy Hollow Bars. Known for precision and reliability, Mourad Metals produces hollow bars that meet stringent international standards, ensuring superior surface finish, dimensional accuracy, and structural integrity. These bars are designed to withstand harsh industrial environments, making them ideal for sectors such as chemical processing, power generation, marine, and aerospace. With a focus on corrosion resistance, high strength, and long-term durability, Mourad Metals provides Incoloy Hollow Bars that deliver consistent performance in demanding engineering applications.
Incoloy Hollow Bars are nickel-iron-chromium alloys with carefully controlled chemical compositions, often including molybdenum, copper, or titanium depending on the specific grade. This composition provides excellent resistance to oxidation, stress corrosion cracking, and general corrosion, even in high-temperature and aggressive chemical environments. Mechanically, they offer high tensile strength, toughness, and ductility, ensuring reliable performance under stress. The hollow design reduces weight without compromising strength, while maintaining dimensional stability and mechanical integrity, making these bars suitable for demanding industrial components where both durability and precision are critical.
| Dimensions | BS, DIN, EN, AISI, JIS, ASME, ASTM |
|---|---|
| Size of Round Bars | Thickness: 2 milimeter-100 milimeter |
| Surface | Bright, Hot Rolled Pickled, Hairline, Cold Drawn, Sand Blasting Finished, Polished |
| Processing | cutting to 650 milimeter |
| Tolerance | H9, K9, H8, H12, K12, H11, H13, K10, K11, H10, or as per need |
| Finish | centreless ground, Cold (bright) drawn, smooth turned, hot rolled, slit rolled edge, peeled, Rough Turned, hot rolled annealed, Polish, Bright, Centreless Ground, Grinding & Black |
| Method | Cold Drawn, Hot Rolled, Cold Rolled Rod, Forged Round Bars |
| Condition | annealed, Hardened & tempered |
| Density | g/cm3 | 7.94 | |
|---|---|---|---|
| lb/in.3 | 0.287 | ||
| Melting Range | °F | 2475 – 2525 | |
| °C | 1357 – 1385 | ||
| Condition & Size | Tensile Strength | Yield Strength (0.2% Offset) | Elongation | Reduction of Area | Hardness |
|---|---|---|---|---|---|
| MPa, min | MPa, min | %, min | %, min | Rockwell, max | |
| Hot worked, as-hot-worked | 550 | 240 | 25 | … | … |
| Cold-worked and hot-worked, annealed | 515 | 205 | 30 | … | … |
| US Bar | Metric | Japanese | Canadian/ASTM | ||||
|---|---|---|---|---|---|---|---|
| Diam. (Inch) | Bar Size | Diam. (mm) | Bar Size | Diameter (mm) | Bar Size | Diameter (mm2) | Bar Size |
| 0.250 | #2 | 5 | 5 | 6 | 6 | 100 | 10M |
| 0.375 | #3 | 5.5 | 5.5 | 10 | 10 | 200 | 15M |
| 0.500 | #4 | 6 | 6 | 13 | 13 | 300 | 20M |
| 0.625 | #5 | 7 | 7 | 16 | 16 | 500 | 25M |
| 0.750 | #6 | 8 | 8 | 19 | 19 | 700 | 30M |
| 0.875 | #7 | 9 | 9 | 22 | 22 | 1000 | 35M |
| 1.000 | #8 | 10 | 10 | 25 | 25 | 1500 | 45M |
| 1.125 | #9 | 11 | 11 | 29 | 29 | 2500 | 55M |
| 1.250 | #10 | 12 | 12 | 32 | 32 | ||
| 1.375 | #11 | 14 | 14 | 35 | 35 | ||
| 1.500 | #12 | 16 | 16 | 38 | 38 | ||
| 1.625 | #13 | 18 | 18 | 41 | 41 | ||
| 1.750 | #14 | 20 | 20 | 44 | 44 | ||
| 1.875 | #15 | 22 | 22 | 48 | 48 | ||
| 2.000 | #16 | 25 | 25 | 51 | 51 | ||
| 2.250 | #18 | 28 | 28 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
Yes, Incoloy Hollow Bars can be welded using appropriate techniques, such as gas tungsten arc welding (GTAW). Proper welding procedures ensure strong, durable joints with minimal risk of cracking or corrosion.
Incoloy Hollow Bars are highly resistant to corrosion due to their alloy composition, and typically do not require additional coatings. However, in extremely aggressive environments, further protective measures may be considered for enhanced durability.
Incoloy Hollow Bars are widely used in applications requiring high corrosion resistance, heat tolerance, and structural strength. They are commonly employed in chemical processing equipment, heat exchangers, piping systems, pumps, valves, and marine or offshore structures exposed to aggressive environments. Their hollow design makes them ideal for reducing material costs and weight while maintaining performance, which is critical in aerospace and power generation applications. Engineers also use them in shafts, tubing, and critical mech
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Mourad Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Tunis, Tunisia
