Mourad Metals, located in Tunis, Tunisia, has built a solid reputation as a reliable manufacturer and supplier of NIMONIC 115 bars and rods, specifically designed for high-temperature and high-stress industrial applications. With a strong commitment to quality, precision manufacturing, and adherence to international standards, Mourad Metals provides NIMONIC 115 products that are celebrated for their excellent creep resistance, outstanding strength, and long-lasting stability even at elevated temperatures. The company blends advanced metallurgical knowledge with state-of-the-art production facilities to guarantee consistent performance, precise dimensions, and dependable supply for critical sectors like aerospace and power generation around the globe.
NIMONIC 115 is a superalloy made from nickel, chromium, and cobalt, reinforced with titanium and aluminum, and enhanced with molybdenum and zirconium to improve creep resistance. This alloy boasts remarkable tensile strength, rupture strength, and oxidation resistance at temperatures reaching up to about 1000°C. It maintains its structural integrity even under prolonged exposure to heat and shows good resistance to fatigue. Thanks to its carefully controlled microstructure, NIMONIC 115 bars and rods offer excellent mechanical reliability, making them ideal for components that face extreme heat and mechanical stress.
| Grade | Nimonic 115 – UNS |
|---|---|
| Standard | ASTM, ASME, API, GB, AISI, DIN, EN, SUS, UNS |
| Nimonic 115 Round bar size | Diameter: 3mm~800mm |
| Nimonic 115 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

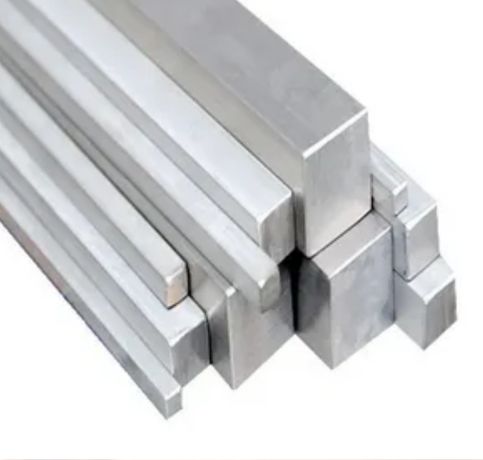

| Nimonic 115 Square bar size | 4mm*4mm~100mm*100mm |
| Nimonic 115 Flat bar size | Thickness: 2mm~100mm |
| Width: 10mm~500mm | |
| Nimonic 115 Hex Bar size | 2mm~100mm |
| Nimonic 115 Billet Size | 1/2″ to 495mm Diameter |

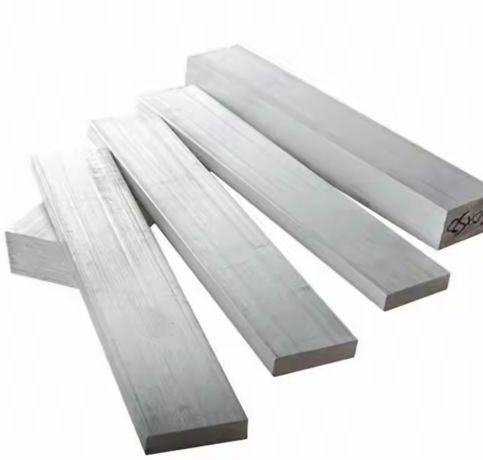

| Nimonic 115 Rectangles Size | 33mm x 30mm to 295mm x 1066mm |
| LENGTHS | 12 RANDOM LENGTHS AND LONG BARS:15 20 RANDOM LENGTHS |
| Nimonic 115 Round Bar Standard Dimensions | Diameter / Height:As the customer required |
| Finish | Bright, Polish, Bright, Rough Turned, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Condition | Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished, Annealed round bar |
| Technique | Nimonic 115 Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod |
| Form | Round, Rod, Precision Ground Bar, Square, Round Rod, Hollow, Hex (A/F), Triangle, Rectangle, Threaded, T-Bar, Half Round Bar, Flat Bar, Rings, Blocks, Billet, Ingot, I/H Bar, Angle, Channel Bar, Profiles, Forging Etc. |
| Element | Content (%) |
|---|---|
| Nickel, Ni | 54 |
| Chromium, Cr | 14.0-16.0 |
| Cobalt, Co | 13.0-15.5 |
| Aluminum, Al | 4.50-5.50 |
| Molybdenum, Mo | 3.0-5.0 |
| Titanium, Ti | 3.50-4.50 |
| Iron, Fe | 1.0 |
| Manganese, Mn | 1.0 |
| Silicon, Si | 1.0 |
| Copper, Cu | 0.20 |
| Zirconium, Zr | 0.15 |
| Carbon, C | 0.12-0.20 |
| Sulfur, S | 0.015 |
| Boron, B | 0.010-0.025 |
| Tensile Strength | Min 185KSI | Min 1277MPA |
| Yield Strength | Min 141KSI | MIN 973MPA |
| Elongation | Min 38% |
| Alloy Name | Trade Name | UNS No. | British Specs | American Specs | German Specs | French Specs |
|---|---|---|---|---|---|---|
| Alloy 115 | Nimonic 115 | BS HR4 | WS 2.4636 | AFNOR NCK 15ATD |
Nimonic 115 rods are available in sizes ranging from 1/8" to 4" diameter. Finishes include cold drawn, polished, and rough turned, suitable for high-temperature applications.
Nimonic 115 rods typically come in standard sizes ranging from 1/8" to 6" in diameter, with lengths varying from 3' to 20' depending on the manufacturer and customer specifications.
Yes, Nimonic 115 rods can be supplied in both polished and matte finishes, depending on the specific requirements and customer preferences. These finishes are available from various suppliers.
These NIMONIC 115 bars and rods find extensive use in aerospace engines, gas turbines, and power generation equipment, where high-temperature strength and creep resistance are essential. Typical applications include turbine blades, discs, combustion chamber components, fasteners, and parts of hot-section structures. Additionally, the alloy is utilized in industrial furnaces, heat-treatment fixtures, and high-performance mechanical systems that operate under severe thermal conditions. Its reliability and long service life make NIMONIC 115 a top choice for applications where safety and performance are paramount.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Mourad Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Tunis, Tunisia
