Mourad Metals, located in Tunis, Tunisia, has built a solid reputation as a reliable manufacturer and supplier of high-performance metals, particularly known for their NIMONIC 86 bars and rods. The company is celebrated for its unwavering dedication to quality, precision, and timely delivery, serving industries that require top-notch heat-resistant and corrosion-resistant materials. With cutting-edge production facilities and strict quality control measures, Mourad Metals guarantees that every NIMONIC 86 bar and rod adheres to international standards. Catering to the aerospace, power generation, and industrial sectors, they blend technical know-how with deep market insight to deliver durable, high-strength solutions tailored for the most challenging engineering applications.
NIMONIC 86 is a nickel-based superalloy, primarily made up of nickel, chromium, cobalt, and molybdenum, with small amounts of titanium and aluminum added for extra strength. This alloy boasts outstanding high-temperature strength, excellent resistance to creep and fatigue, and remarkable protection against corrosion and oxidation. Typically, NIMONIC 86 bars and rods have a tensile strength ranging from about 1000 to 1200 MPa and can maintain stability at temperatures reaching around 700°C. Its microstructure ensures consistent mechanical performance even under thermal and mechanical stress, making it a dependable choice for critical high-temperature components.
| Grade | Nimonic 86 – UNS |
|---|---|
| Specification | ASTM UNS |
| Standard | ASTM, ASME, API, GB, AISI, DIN, EN, SUS, UNS ASTM B166, ASTM B160, ASTM B164, ASTM B446, ASTM B637, ASTM B408, ASTM B425, ASTM B574, ASTM B335, ASTM B473, ASTM B649 |
| Nimonic 86 Round bar size | Diameter: 3mm~800mm |
| Nimonic 86 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

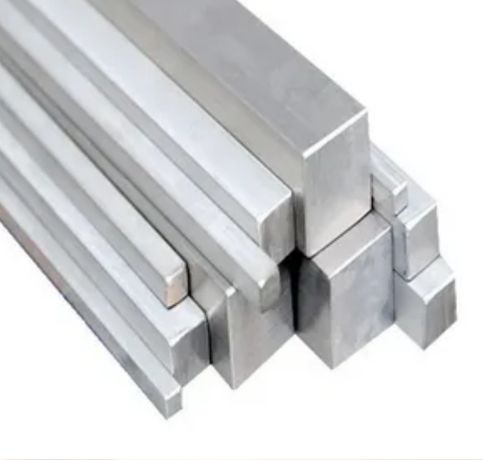

| Nimonic 86 Square bar size | 4mm*4mm~100mm*100mm |
| Nimonic 86 Flat bar size | Thickness: 2mm~100mm |
| Width: 10mm~500mm | |
| Nimonic 86 Hex Bar size | 2mm~100mm |
| Nimonic 86 Billet Size | 1/2″ to 495mm Diameter |
| Nimonic 86 Rectangles Size | 33mm x 30mm to 295mm x 1066mm |
| LENGTHS | 12 RANDOM LENGTHS AND LONG BARS:15 20 RANDOM LENGTHS |
| Nimonic 86 Round Bar Standard Dimensions | Diameter / Height:As the customer required |
| Finish | Bright, Polish, Bright, Rough Turned, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Condition | Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished, Annealed round bar |
| Technique | Nimonic 86 Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod |
| Form | Round, Rod, Precision Ground Bar, Square, Round Rod, Hollow, Hex (A/F), Triangle, Rectangle, Threaded, T-Bar, Half Round Bar, Flat Bar, Rings, Blocks, Billet, Ingot, I/H Bar, Angle, Channel Bar, Profiles, Forging Etc. |
| Weight% | Ni | Cr | Mo | Ce | C |
|---|---|---|---|---|---|
| Alloy 86 | 65 | 25.0 | 10.0 | 0.03 | 0.05 max |
| Material | Treatment | Temperature °C | UltimateTensile Strength MPa | Yield Strength (0.2% Offset) MPa | Elongation on 5.65 √ 50(%) |
|---|---|---|---|---|---|
| Alloy 86 Bar | Heat Treatment 4h/1150°C/ AC | 300 | 251 | 692 | 49 |
| Allloy 86 Bar | Heat Treatment 4h/1150°C/ AC | 500 | 243 | 661 | 54 |
| Allloy 86 Bar | Heat Treatment 4h/1150°C/ AC | 700 | 239 | 557 | 56 |
| Allloy 86 Bar | Heat Treatment 4h/1150°C/ AC | 850 | 173 | 319 | 69 |
Nimonic 86 rods are available in various sizes ranging from 6mm to 100mm in diameter, with finishes including hot-rolled, cold-drawn, and polished options for enhanced surface quality.
Yes, Nimonic 86 rods can be supplied in both polished and matte finishes, depending on the supplier and specific requirements for your application or aesthetic preferences.
Nimonic 86 rods typically come in standard sizes ranging from 0.25 inches to 3 inches in diameter, with lengths varying between 3 feet to 12 feet, depending on the supplier.
These NIMONIC 86 bars and rods find extensive applications in aerospace, gas turbine engines, and power generation equipment, thanks to their exceptional high-temperature strength and corrosion resistance. They are perfect for components like turbine blades, discs, shafts, and hot section fasteners, which must withstand extreme thermal and mechanical stresses. Moreover, their stability during prolonged exposure to heat and oxidative environments makes them ideal for chemical processing and industrial furnace applications. Engineers and designers trust NIMONIC 86 for parts where performance, reliability, and longevity are paramount, ensuring safety and efficiency in demanding operational conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
