Tool and Die Steel W1 Bars

Mourad Metals is a well-respected manufacturer and supplier of top-notch Tool and Die Steel W1 Bars, located in Tunis, Tunisia. With a strong focus on quality, precision, and consistency, Mourad Metals delivers dependable steel solutions to the tooling and engineering sectors. The W1 tool steel bars are crafted using meticulously controlled processes and high-quality raw materials, ensuring they provide excellent machinability and a reliable response to heat treatment. Catering to both local and international markets, the company guarantees timely deliveries, technical support, and products that adhere to global standards.

AISI W1 Tool Steel Round Bars Dealer in Sousse, Tool Steel T72301 Bar Manufacturer in Tunis, Chrome Moly Steel W1 Round Bars Supplier in Sfax, W1 Tool and Alloy Steel Bars Price List in Tunisia, Die Steel W1 Bars Supplier in Kairouan, W1 Alloy Steel Round Bars Price Per Meter, ASTM A681 W1 Tool Steel Round Bars Size Chart, Tool and Die Steel T72301 Threaded Bar Price List in Tunisia, Alloy Steel W1 Rods Stockist in Bizerte, Die Steel Round Bar W1 Supplier in Kairouan

W1 Tool Steel Round Bar

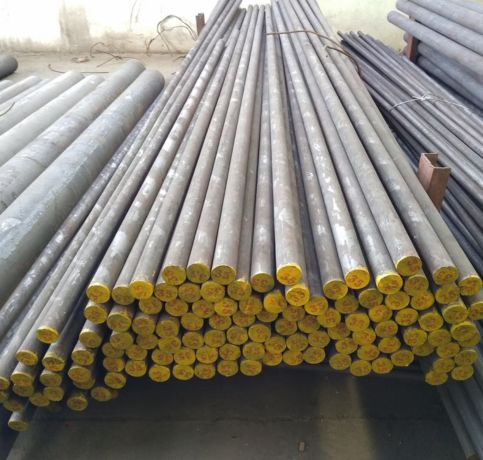

Die Steel W1 Rods

W1 Tool and Die Steel Bar

What is Tool and Die Steel W1 Bars?

Tool and Die Steel W1 Bars are high-carbon, water-hardening tool steels, typically containing between 0.70% and 1.50% carbon, along with trace amounts of manganese, silicon, and other elements. This specific composition results in remarkable hardness and wear resistance after heat treatment. In terms of mechanical properties, W1 steel boasts high tensile strength, good toughness when hardened, and excellent edge retention. It responds effectively to water quenching, ensuring uniform hardness and dimensional stability, making it perfect for precision tooling applications.

Tool Steel 1.1545 Round Bars Exporter in Tunisia, Alloy Steel W1 Round Bars Stockist in Tunis, W1 Die Steel Alloy Steel Bars Supplier in Bizerte, SAE J437 Cold Drawn Bar Distributor in Tunis, W1 Hot Rolled Alloy Steel Bar Stockist Tunisia, High Quality W1 Cold Work Die Steel Round Bar Price in Sousse, High-carbon Steel W1 Round Bars And Rods Price List, Tool Steel UNS T72301 Rods Supplier in Tunisia, Quenched & Tempered W1 Alloy Steel Bar Manufacturer in Sousse

Tool and Die Steel W1 Bars Specifications

Standard : ASTM A681, ASME SA681
Dimensions : EN, DIN, JIS, ASTM, BS, ASME, AISI
Form : Round
Diameter : 10 mm ~ 900 mm
Size : 0.08 mm to 25.00 mm
Diameter Range : 0.040 mm – 12 mm (0.0016” – 0.4724”)
Application : Lathe Tools, Milling Cutter, Cutter Blades, Boring Tools, Twist drills, Milling Knives, Reamers, Taps, Metalcutting saws, Screw Cutting Tools, File Cutter’s Chissels, Drills, Hobs, Drill Bits, Tread cutting tools etc

Chemical Compositions of Tool and Die Steel W1 Bars

Element	Content (%)
C	0.70-1.50
Mn	0.10-0.40
Si	0.10-0.40
Cr	0.15
Ni	0.2
Mo	0.1
W	0.15
V	0.1
Cu	0.2
P	0.025
S	0.025

Mechanical Properties of Tool and Die Steel W1 Bars

Properties	Metric	Imperial
Tensile strength, ultimate	1680 MPa	244000 psi
Tensile strength, yield	1500 MPa	218000 psi
Poisson’s ratio (25°C)	0.27-0.30	0.27-0.30
Elongation at break	3.50%	3.50%
Bulk modulus	140 GPa	20300 ksi
Shear modulus	80.0 GPa	11600 ksi
Elastic modulus	190-210 GPa	27557-30458 ksi
Charpy impact, unnotched	86.0 J	63.4 ft-lb
Hardness, Brinell (converted from Rockwell C Hardness)	498	498
Hardness, Knoop (converted from Rockwell C Hardness)	558	558
Hardness, Rockwell C	50.0-51.0	50.0-51.0
Hardness, Vickers (converted from Rockwell C Hardness)	531	531
Machinability (based on AISI 1212 steel as 100% machinability)	40	40

You Need Our Support, to Have Any Projects?

Test Certificate

Why Mourad Metals?

Packaging

Physical Properties of Tool and Die Steel W1 Bars

Properties	Metric	Imperial
Density	7.83 g/cm³	0.283 lb/in³
Melting point	1435°C	2615°F

Thermal Properties of Tool and Die Steel W1 Bars

Properties		Conditions
Properties		T (ºC)	Treatment
Thermal expansion	10.4 x 10^-6/ºC	20-100	–
Thermal conductivity	48.3 x W/mK	100	–

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Tool and Die Steel W1 Bars Types

ASME SA681 Tool Steel W1 Hot Forged Bars Exporter in Sfax, Stockist of W1 Die Steel Bars in Bizerte, UNS T72301 Round Bars Supplier in Tunisia, ISO 4957 Round Bar Price List in Tunis,High-chromium W1 Bars Exporter in Sfax , Tool and Die Steel W1 Bars Exporter in Tunisia, Alloy Steel W1 Rods Supplier in Bizerte, CrMo W1 Cold Drawn Round Bars Manufacturer in Sfax , W1 Tool Steel Alloy Steel Round Bars Distributor in Tunisia, Carbon Steel W1 Hot Rolled Round Bars Dealer in Sousse

Frequently Asked Questions (FAQ)

Are Tool and Die Steel W1 Bars Environmentally Friendly?

Tool and Die Steel W1 bars are recyclable, reducing environmental impact. However, their production involves energy-intensive processes. Sustainable practices can enhance their eco-friendliness, such as using recycled materials and cleaner manufacturing methods.

How Do Tool and Die Steel W1 Bars Resist Corrosion?

Tool and Die Steel W1 bars are not highly resistant to corrosion, as they are high-carbon steels. They can rust when exposed to moisture, requiring proper maintenance, such as coating or regular oiling, to prevent corrosion.

Can Tool and Die Steel W1 Bars Be Used For Structural Applications?

Tool and Die Steel W1 bars are not ideal for structural applications due to their high carbon content, which makes them brittle and less ductile. They are better suited for tools, dies, and cutting applications where hardness and wear resistance are crucial. For structural applications, steels with better toughness and strength, like carbon or alloy steels, are preferred.

Tool and Die Steel W1 Bars Uses

Tool and Die Steel W1 Bars are extensively utilized in the production of cutting tools and precision components that demand high hardness and sharp edges. Common uses include dies, punches, reamers, taps, drills, knives, hand tools, and woodworking tools. They are also employed in gauges, shear blades, and cold-work tooling where wear resistance is essential. Thanks to their predictable heat-treatment behavior and outstanding machinability, W1 bars are ideal for custom tools, maintenance tooling, and short-run production needs.

Our Products

Other Material

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
