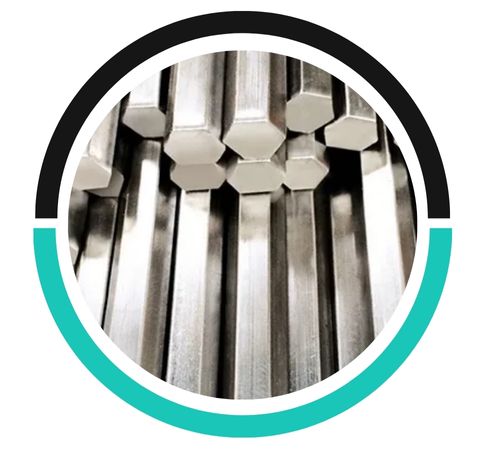

Mourad Metals is a reputable manufacturer and supplier of Stainless Steel 904L Hex Bars, proudly based in Tunis, Tunisia. They specialize in delivering high-performance solutions tailored for demanding industrial applications. Known for their exceptional quality and precision, Mourad Metals ensures that their hex bars meet international standards and undergo rigorous quality controls. Stainless Steel 904L is a high-alloy austenitic grade celebrated for its remarkable resistance to corrosion, particularly in harsh chemical environments. With state-of-the-art manufacturing facilities and a team of skilled professionals, Mourad Metals is dedicated to timely delivery, serving a variety of sectors with durable, reliable, and customized Stainless Steel 904L Hex Bars for clients around the globe.
These hex bars are crafted from a blend of high levels of nickel, chromium, and molybdenum, with added copper to boost resistance against strong acids and localized corrosion. This low-carbon alloy is known for its excellent toughness and stability across a wide temperature range. In terms of mechanical properties, 904L hex bars showcase impressive tensile and yield strength, high ductility, and outstanding impact resistance. The alloy maintains its structural integrity even under severe conditions, offers excellent weldability, and reduces the risk of stress corrosion cracking, making it a top choice for critical engineering and chemical processing applications.
| Specifications | ASTM B649 / ASME SB 649 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Stainless Steel Round Bar | Outside Diameter in the range of 4mm to 500mm |
| Stainless Steel Bright Bar | Outside Diameter in the range of 4mm to 100mm |
| Stainless Steel Hex Bar | 18mm – 57mm (11/16″ to 2-3/4″) |
| Stainless Steel Square Bar | 18mm – 47mm (11/16″ to 1-3/4″) |
| Stainless Steel Flat Bar | 1/2″ to 10″ in thickness range of 2 mm to 150mm, Custom Size Stainless Steel Flats available |
| Range | 3.17 MM TO 350 MM DIA |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Finishing | Bright, Polish & Black |
| Form of | Hex, Wire (Coil Form), Wiremesh, Billet, Ingot, Forging Etc., |
| Other Services | Machining (CNC), Centreless Grinding (CG), Heat Treatment, Annealing, Pickling, Polish, Rolling, Forging, Cutting, Bending, Minor Fabrication, |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu | |
| SS 904L | Min | – | – | – | – | – | 19 | 4 | 23 | 1 |
| Max | 0.02 | 2 | 1 | 0.045 | 0.035 | 23 | 5 | 28 | 2 |
| Grade | Tensile strength (MPa) | Yield Strength 0.2% Proof(MPa) | Elongation (% in 50mm) | Hardness – Brinell |
| 904L | 490 | 220 | 36 | 70-150 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
SS 904L Hex Bar offers excellent corrosion resistance, especially against pitting, crevice, and stress corrosion cracking. Its high nickel and chromium content make it ideal for harsh environments like chemical processing, marine, and power plants. The hexagonal shape provides enhanced strength and machinability, ensuring durability and reliability in industrial applications.
SS 904L outperforms many stainless steels, such as 304 and 316, in corrosion resistance due to its higher nickel and molybdenum content. This composition enhances resistance to chloride-induced pitting and crevice corrosion, making it ideal for environments with high chloride concentrations or acidic exposure, such as chemical and marine applications.
SS 904L Hex Bar is commonly used in the chemical, petrochemical, marine, and pharmaceutical industries. It is ideal for applications such as heat exchangers, reactor vessels, pressure vessels, and piping systems, where resistance to corrosion, especially in acidic and chloride-rich environments, is critical for long-term durability and performance.
Stainless Steel 904L Hex Bars find their place in industries that require superior corrosion resistance and a long service life. They are commonly used in chemical processing equipment, oil and gas components, heat exchangers, and pharmaceutical machinery that are exposed to harsh media. Additionally, they thrive in marine environments, pollution control systems, and power generation units due to their ability to withstand chloride and acidic conditions. Moreover, 904L hex bars are perfect for fasteners, valves, pumps, and precision-machined components where strength, reliability, and resistance to aggressive environments are crucial.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Mourad Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Tunis, Tunisia
