Mourad Metals, located in Tunis, Tunisia, stands out as a top manufacturer and supplier of high-quality Titanium Grade 1 Bars and Rods. Known for their dedication to precision and excellence, Mourad Metals provides products that adhere to strict international standards. Titanium Grade 1, which is commercially pure, boasts remarkable corrosion resistance, biocompatibility, and ductility, making it perfect for a variety of demanding applications. With state-of-the-art production facilities and knowledgeable technical support, Mourad Metals guarantees consistent quality and timely delivery, catering to industries that need durable and reliable titanium solutions. Their commitment to innovation and customer satisfaction has established them as a trusted partner on a global scale.
Titanium Grade 1 Bars and Rods consist of over 99% pure titanium, with small amounts of iron, oxygen, carbon, and nitrogen that enhance their strength and corrosion resistance. As the softest and most ductile of the titanium grades, Grade 1 offers excellent formability, making it ideal for bending, welding, and machining. It provides outstanding corrosion resistance in oxidizing and mildly reducing environments, along with good tensile strength, making it a dependable choice for both structural and chemical applications. Its low density and impressive strength-to-weight ratio further boost its versatility in challenging engineering solutions.
| Standards : | ASTM B348, B863 / ASME SB 348, SB 863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |
| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |

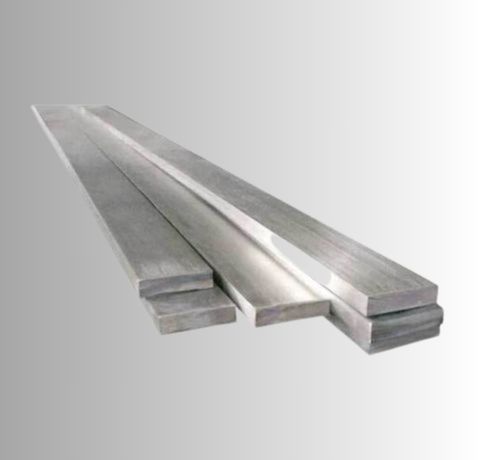

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 1 | 3.7025 | R50250 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 1 | 0.08 max | 0.03 max | 0.18 max | 0.015 max | Bal | 0.20 20 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 240 | 170 | 24 % |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.51Â g/cc | 0.163Â lb/inÂł |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 1 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@mouradmetals.com
These Titanium Grade 1 Bars and Rods find extensive use in chemical processing equipment, marine settings, and desalination plants due to their exceptional corrosion resistance. They are also utilized in medical implants and surgical instruments because of their biocompatibility and non-toxic properties. Other applications include aerospace components, heat exchangers, and architectural structures where lightweight strength is crucial. Industries such as power generation, pulp and paper, and automotive engineering also rely on these bars and rods for essential components. Their durability, resistance to fatigue, and ease of fabrication make Titanium Grade 1 an excellent choice for a wide range of applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
