Mourad Metals is a trusted manufacturer and supplier of Titanium Grade 12 Bars and Rods, proudly based in Tunis, Tunisia. The company focuses on providing top-notch titanium products that adhere to international standards and meet the rigorous demands of various industries. With cutting-edge manufacturing techniques and a commitment to strict quality control, Mourad Metals guarantees that their Titanium Grade 12 Bars and Rods boast exceptional consistency, durability, and performance. Backed by technical know-how, tailored solutions, and a streamlined supply chain, the company caters to a diverse array of industries and maintains a robust presence in both local and global markets.
Titanium Grade 12 Bars and Rods are made from an alloyed titanium grade that includes small amounts of nickel and molybdenum, which significantly boost their strength and resistance to corrosion. This grade provides greater mechanical strength compared to commercially pure titanium while still offering good ductility and weldability. Typical mechanical properties include a tensile strength of around 483 MPa, yield strength of about 345 MPa, and an elongation of roughly 18%. Titanium Grade 12 is known for its outstanding resistance to crevice corrosion, pitting, and stress corrosion cracking, even in harsh environments.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

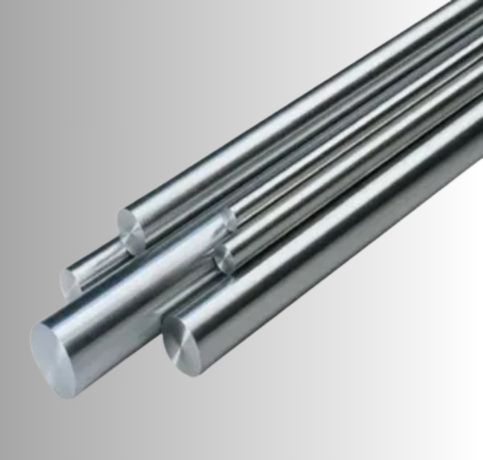

| Round bar size : | Diameter: 3-~800mm |
| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

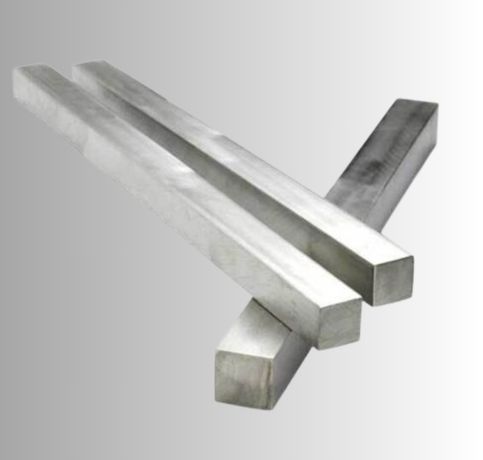

| Square bar size : | 4 to 100mm |

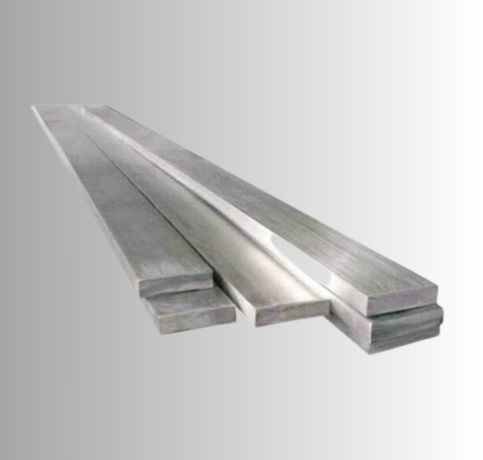

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 12 | 3.7105 | R53400 |
| Grade | C | N | O | H | Ti | Fe | Al | Pd |
| Titanium Gr 9 | .08 max | .03 max | .25 max | .015 max | Bal | 0.30 max | – | .12 – .25 |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade 12 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Density | Melting Range | Modulus of Elasticity (Tension) | Specific Heat | Mean Coefficient of Expansion | Thermal conductivity | Electrical Resistivity |
| kg/m3 | °C | GPa | J/kg. °C | x10 -6 / °C | W / m. °C | micro-ohm.m |
| 4,507 | 1668± 10 | 103 | 519 | 8.41 | 11.4 | 0.420 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Grade 12 Titanium Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Titanium Grade 12 offers excellent resistance to corrosion, especially in oxidizing and mildly reducing environments, and is highly durable in seawater and chemical processing conditions.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@mouradmetals.com
Yes, Titanium Grade 12 exhibits remarkable high-temperature resistance, making it suitable for use in power generation and industrial processes that involve elevated temperatures.
These Titanium Grade 12 Bars and Rods are widely utilized in applications that demand a blend of high strength and excellent corrosion resistance. They’re often found in chemical processing equipment, heat exchangers, piping systems, and marine components. The material is also ideal for the oil and gas sector, power generation, and desalination plants, thanks to its resilience in tough conditions. Furthermore, Titanium Grade 12 is a popular choice in industrial and aerospace applications where longevity, reliability, and minimal maintenance are crucial.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
