Mourad Metals is a reliable manufacturer and supplier of Titanium Grade 4 Bars and Rods, proudly based in Tunis, Tunisia. Renowned for its dedication to quality and precision, the company delivers high-performance titanium products that adhere to international standards and meet rigorous industry demands. With state-of-the-art production facilities and stringent quality control measures, Mourad Metals guarantees Titanium Grade 4 Bars and Rods that boast exceptional consistency, strength, and reliability. Their customer-centric approach, technical know-how, and efficient logistics allow them to cater to a diverse array of industries both locally and globally.
Titanium Grade 4 Bars and Rods are crafted from commercially pure titanium, featuring a higher oxygen content than lower grades, which translates to enhanced strength. This grade strikes a remarkable balance between strength, ductility, and corrosion resistance. Typical mechanical properties include a tensile strength of around 550 MPa, yield strength of approximately 485 MPa, and an elongation of about 15%. Additionally, Titanium Grade 4 offers good weldability, toughness, and impressive resistance to corrosion, even in harsh chemical and marine environments.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

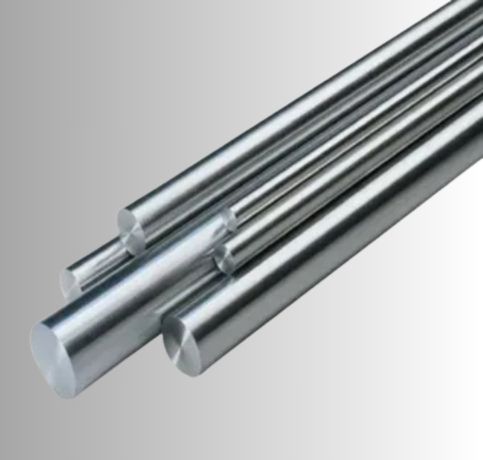

| Round bar size : | Diameter: 3-~800mm |
| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

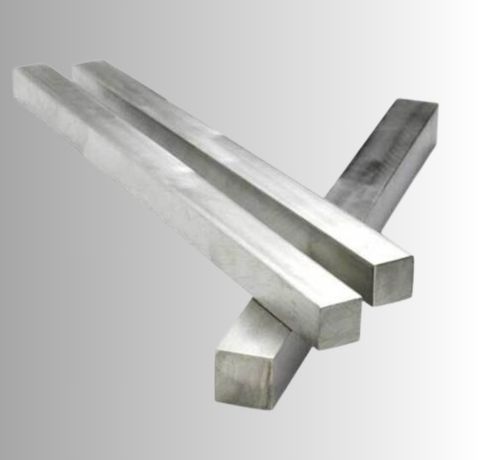

| Square bar size : | 4 to 100mm |

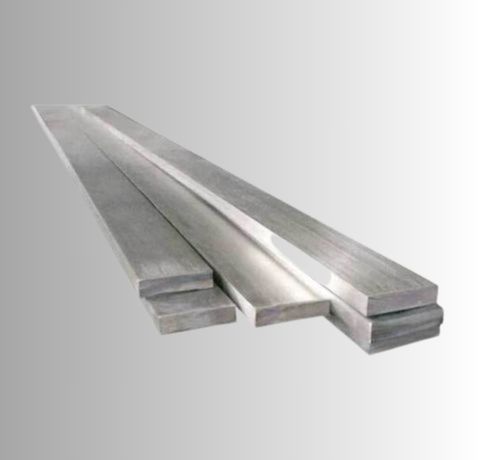

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 4 | 3.7065 | R50700 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 4 | 0..08 max | 0.05 max | 0.40 max | 0.015 max | Bal | 0.50 max |
| Tensile Strength | Reduction of area | Elongation | Hardness |
| 552 | 25 % | 15 % | 100 |
| Density | Electrical conductivity (% IACS) | Thermal conductivity (BTU-in/hr-ft²-°F) | Specific heat (BTU/lb-°F) | Thermal expansion (1/°F) | Melting Point (°F) |
| 0.163 | 2.87 | 119 | 0.127 | 0.00000478 | 3020 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 4 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@mouradmetals.com
Titanium Grade 4 Bars and Rods are composed of 90% titanium, 6% aluminum, and 4% vanadium, offering excellent strength, corrosion resistance, and durability.
Yes, Titanium Grade 3 has good weldability, making it suitable for various applications where welding is required.
These Titanium Grade 4 Bars and Rods find extensive use in applications that demand high strength and outstanding corrosion resistance. They’re commonly found in aerospace components, chemical processing equipment, heat exchangers, and marine hardware. The material is also favored in medical and dental implants due to its biocompatibility and strength. Furthermore, Titanium Grade 4 is utilized in the oil and gas sector, power generation, and various industrial applications where durability, lightweight characteristics, and a long service life are essential.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
